THERMAL WEAPON SIGHT

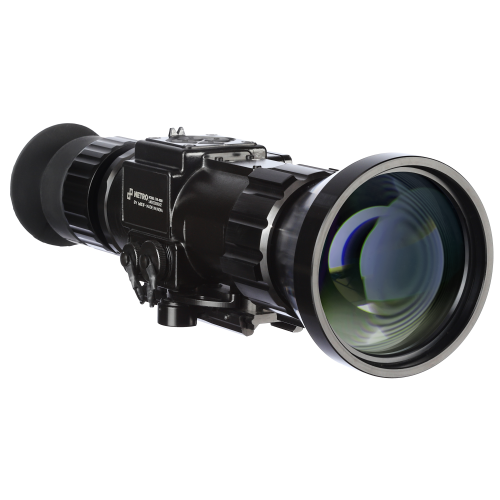

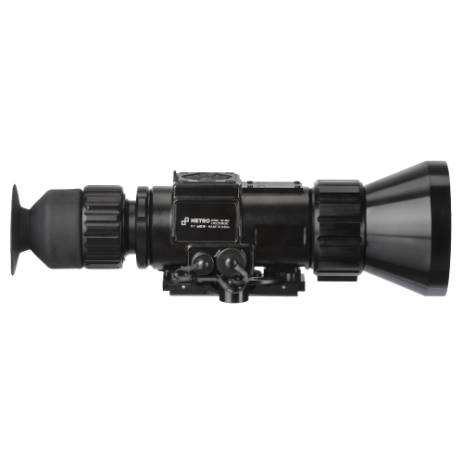

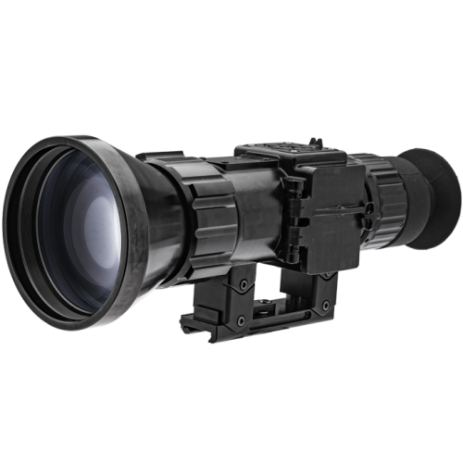

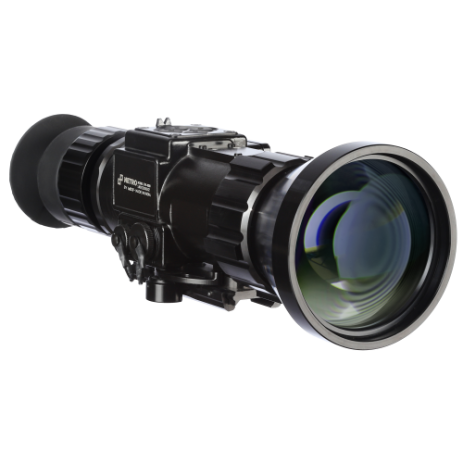

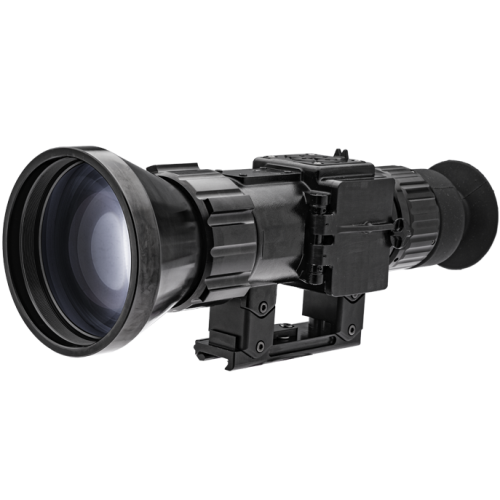

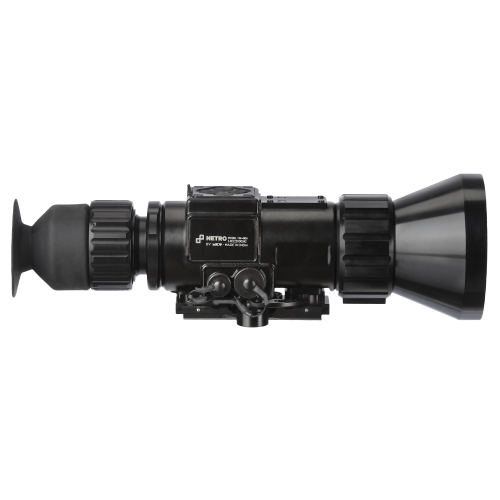

NETRO TW-4100

THERMAL WEAPON SIGHT

Netro TW-4100 is a rugged and lightweight JSS-55555 / MIL-STD-810G compliant weapon sight that offers high-quality optics for long ranges. It is equipped with a high-resolution thermal imaging sensor which is ideal for night missions that demand accurate aiming.

With the reticule adjustment in both azimuth and elevation directions, Netro TW-4100 offers excellent bore-sighting and target acquisition capabilities and can easily be mounted on rifles, light machine guns, medium machine guns and heavy machine guns with the use of MIL STD 1913 compliant picatinny rail. The device also includes a built-in system for marking range as well.

Micro Bolometer

"This device uses a un-cooled Microbolometer thermal detector to sense heat signatures.

User-Friendly Interface

This device features a user interface which is intuitive and easy to operate

Multiple Weapon Compatibility

This device can be used with multiple weapons with a picatinny rail.

Steady Targeting

This device features a sturdy mount for steady targeting.

Ease of Use

This device has ergonomic controls which are easy to operate even with gloved hands.

Easy Mounting

This device can be easily clamped on or off a weapon with a picatinny rail.

Pitch

This device offers excellent performance in a compact size with 12 micron pitch.

High Frame Rate

This device delivers high frame and refresh rates to reduce latency.

Low Latency

This device displays pictures and information with minimal delay undetectable by human eye.

E-Zoom

This device is equipped with an e-zoom feature for additional digital magnification over optical magnification

Reticle Adjustment

This device features an adjustable bullet drop compensation reticle for accurate zeroing and aiming efficiency.

NUC Shutterless

This device uses a shutterless process for calibration.

Wide Dioptre Range

This device offers a wider range of dioptre adjustments for use without powered spectacles.

Analog & Digital Output

This device has an analogue and digital output interface.

OLED

This device features has OLED (Organic Light Emitting) display for improved image quality, better contrast, higher brightness and faster refresh rates

High Recognition Range

This device can detect and classify objects (animal, human, vehicle, etc.) at longer distances.

Instant Image

This device is provides instant imaging when started.

Rugged

The device is durable and can be operated in harsh and rough conditions.

Water Proof

This device is water resistant up to 5 meters.

Field of View	9⁰ x 7⁰ (Max)
Spectral Range	8-14 µm
Resolution	640 x 480 (Min)
NETD	< 50mK
Display	AMOLED / OLED
Display Resolution	640 x 480 (Min)
Electonic Zoom	4x (Min)
Battery Type	Commercial Available Battery
Pixel Pitch	≤17 µm
Environmental Std.	JSS-55555/ MIL-STD 810G Compliant
Operating Temperature	-46° C to +55° C
Storage Temperature	-46° C to +71° C
Polarity	Black Hot, White Hot, False Colour
